Image generation

nika:image_generate treats images as workflow citizens: the same declared permits: boundary that gates file writes gates every save, real spend lands in the run ledger, and provenance is structural — in the manifest beside the asset and inside the PNG itself. One workflow renders through any of five image providers — local server first; the run meters $0.02 exactly; the asset lands sha256-named with a provenance manifest beside it

One workflow renders through any of five image providers — local server first; the run meters $0.02 exactly; the asset lands sha256-named with a provenance manifest beside it

The five providers

provider	default model	wire	what to know
`local`	`stablediffusion`	your server’s OpenAI-images route	The sovereign path. One wire covers LocalAI (`:8080`), Ollama (`:11434`), stable-diffusion.cpp `sd-server` (`:1234`), SGLang Diffusion and vLLM-Omni. Never inferred from `model:` — always explicit.
`openai`	`gpt-image-2`	Images API	Exact sizes (`WxH`), native `n`, `background: transparent`, webp/jpeg `compression`.
`gemini`	`gemini-3.1-flash-image`	`generateContent`	Aspect-ratio classes; may return an interleaved caption (surfaced as `provider_text`, clamped).
`xai`	`grok-imagine-image`	Imagine API	Native aspect ratios + `resolution: 1k\|2k` classes; the `-quality` model tier is the quality knob; bills exact cost into the run ledger.
`mock`	`mock-image-1`	in-process	Real, decodable, deterministic PNG files — zero network, zero keys. CI runs the whole pipeline offline.

Keys and the local URL are engine config, never workflow args: OPENAI_API_KEY / GEMINI_API_KEY / XAI_API_KEY (or NIKA_-prefixed), NIKA_IMAGE_LOCAL_URL (+ optional NIKA_IMAGE_LOCAL_API_KEY). Check what’s wired with nika doctor — it prints an image line naming the ready providers.

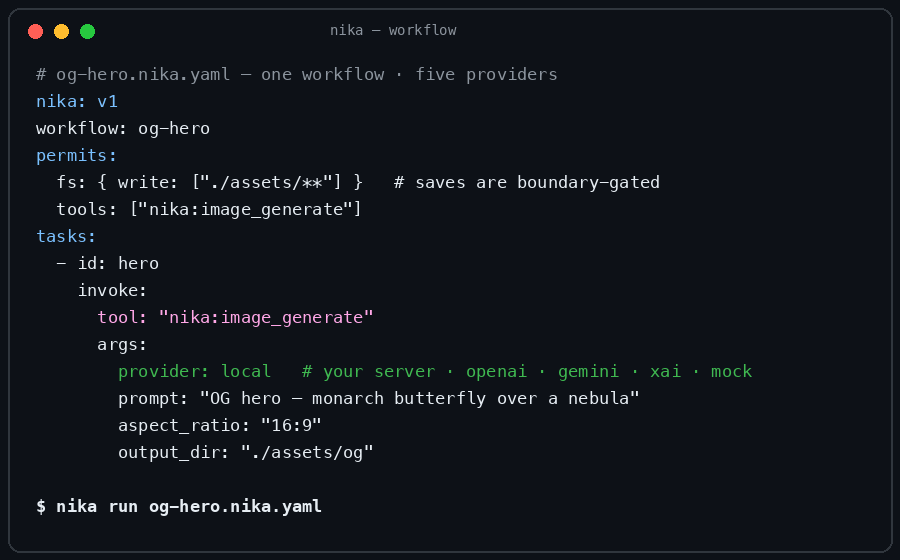

Sovereign quickstart (local server)

# LocalAI (first-party spec-complete compat route · :8080)
docker run -p 8080:8080 localai/localai:latest

# …or Ollama (macOS · experimental image generation · :11434)
export NIKA_IMAGE_LOCAL_URL=http://localhost:11434

# …or stable-diffusion.cpp's server (:1234)
export NIKA_IMAGE_LOCAL_URL=http://localhost:1234

nika: og-hero-sovereign
permits:
  fs: { write: ["./assets/**"] }
  tools: ["nika:image_generate"]
tasks:
  hero:
    invoke:
      tool: "nika:image_generate"
      args:
        provider: local
        model: "x/z-image-turbo"        # model names are server-specific
        prompt: "OG hero — a monarch butterfly over a nebula"
        aspect_ratio: "16:9"
        output_dir: "./assets/og"

The engine forces response_format: b64_json (LocalAI defaults to URL mode), refuses url-only answers (result URLs are never fetched — that would reopen the SSRF surface the fixed-endpoint design closed), and gives local renders a 300s default timeout — CPU diffusion runs minutes, raise timeout_ms: up to 600000 when needed. SD-family servers honor a positive | negative prompt split written directly inside prompt:.

What lands on disk

assets/og/
├── hero-local-x-z-image-turbo-0-9ec15c15.png        # sha256-named
└── hero-local-x-z-image-turbo-66a35545.manifest.json

The manifest carries the resolved request, per-image sha256 + dimensions, endpoint_host (which server actually rendered it), timing, warnings, cost_usd, and your metadata: fields — never a credential, by construction. The PNG itself carries a nika tEXt chunk (tool, engine version, provider, model, prompt, seed) — so provenance survives cp, the practice ComfyUI and InvokeAI standardized. Read it back with any PNG tool:

python3 -c "import png"  # or: exiftool asset.png | grep -i nika

Content credentials (detect-and-preserve)

OpenAI and Google sign their API bytes with C2PA Content Credentials — and C2PA hashes the file’s byte ranges, so any pipeline that writes into a signed render converts valid credentials into « present but tampered ». Nika detects the signals first (PNG caBX · JPEG APP11 JUMBF · RIFF C2PA · MP3 GEOB): on signed payloads the nika tEXt embed stands down (their signed manifest outranks our informal chunk — a loud content_credentials_preserved: warning says so), and the output + manifest surface content_credentials: "c2pa" plus watermark_declared (SynthID is a provider fact — only the vendor can detect it). Detection labels only: the wire never says « verified ». With EU AI Act Article 50 in force from 2026-08-02, preserving machine-readable marks is part of an operator’s compliance surface — no other workflow engine even looks.

Honesty rules (what the warnings mean)

Every lossy mapping is a stable, visible warning — silent degradation is non-conformant per the spec:

count_shortfall: — the provider returned fewer than n: (Ollama’s compat route ignores n, moderation can filter variants).
size_conflict: · xai_size_class: · aspect_remapped: — your exact size was folded to the provider’s nearest class, loudly.
seed_unsupported: · quality_folded: · compression_ignored: — the knob doesn’t exist on that provider; the arg was dropped, visibly.
format_mismatch: — fires only when you explicitly asked for a format the provider didn’t honor; magic bytes name the real extension either way.

Real spend in the ledger

xAI bills images in cost ticks — the engine converts them exactly and the render’s cost rides the task line, the run total, and the manifest:

✔  render  invoke · nika:image_generate  5.6s · $0.02
── 1/1 done · $0.02 · elapsed 5.6s ──────────────────

Any invoke tool reporting a top-level cost_usd in its structured output is metered the same way. Providers that don’t report exact cost show null — never an estimate dressed as truth.

Cookbook (each proven end-to-end against live APIs)

An LLM writes the brief, another provider renders it:

nika: brief-to-image
model: gemini/gemini-2.5-flash
permits:
  fs: { write: ["./out/**"] }
  tools: ["nika:image_generate"]
tasks:
  brief:
    infer:
      prompt: "Write a vivid one-sentence OG-image brief for a post about local-first AI. Pick the ratio."
      schema:
        type: object
        required: [brief, aspect_ratio]
        properties:
          brief: { type: string }
          aspect_ratio: { type: string, enum: ["1:1", "16:9", "4:3"] }
  render:
    with:
      brief: ${{ tasks.brief.output.brief }}
      ratio: ${{ tasks.brief.output.aspect_ratio }}
    invoke:
      tool: "nika:image_generate"
      args:
        provider: xai
        prompt: "${{ with.brief }}"
        aspect_ratio: "${{ with.ratio }}"
        output_dir: "./out"

Fan out one hero across locales (concurrent, one output dir):

  hero:
    for_each:
      items: ${{ const.locales }}      # ["fr", "es", "ja"]
      max_parallel: 3
    with: { locale: ${{ item }} }
    invoke:
      tool: "nika:image_generate"
      args:
        provider: mock                   # flip to local/gemini/openai/xai
        prompt: "launch hero, locale ${{ with.locale }}"
        output_dir: "./out"
        filename_prefix: "hero-${{ with.locale }}"

Let an agent decide the arguments (the model reads the tool definition):

  designer:
    agent:
      prompt: >
        Generate exactly one minimalist butterfly logo using the image tool
        (provider xai, aspect_ratio 1:1, output_dir ./out), then call done
        with the saved path.
      tools: ["nika:image_generate", "nika:done"]
      max_turns: 4

Retry transient failures (a local server still loading its model):

  render:
    retry:
      max_attempts: 3
      on_codes: ["NIKA-BUILTIN-IMAGE_GENERATE-003"]
    invoke:
      tool: "nika:image_generate"
      args: { provider: local, prompt: "…", output_dir: "./out" }

Why this design (versus every other engine)

No other workflow engine permit-gates image saves, verifies returned bytes against declared MIME types, writes a provenance manifest with the resolved request, refuses to fetch result URLs, or ships a local-first provider — and none embed provenance in the file itself (that practice comes from the image-native world). The full comparison lives in the builtins reference.

Editing (`mode: edit`)

An input image plus an instruction — the same builtin, one arg away:

  night:
    with:
      src: ${{ tasks.render.output.images[0].path }}   # edit what you generated
    invoke:
      tool: "nika:image_generate"
      args:
        provider: openai            # the first edit wire · gemini/xai/local follow
        mode: edit
        image: ${{ with.src }}
        prompt: "make it night — starry sky"
        output_dir: "./out"

The rules mirror generation, inverted where reading demands it:

Reads are permit-gated. Every image:/images:/mask: path is enforced against permits.fs.read before a byte is read — the exact mirror of the save boundary. Edit reads what generate writes, so a generate→edit chain declares both read: and write:.
image: XOR images: — one source or many (capped per provider: openai 16 · gemini 14 · xai 3), 20 MB each, magic-byte sniffed.
A mask: is refused, never dropped, on providers that edit by instruction only (gemini/xai): a silently-ignored mask edits the wrong region. openai (and local inpaint) take pixel masks.
The provenance chain survives. The manifest carries mode: "edit" plus source_images: [{path, sha256, format}] — an edited asset records exactly what it derived from.

reference_images: (compose-from-references) and save: false remain reserved — refused loudly rather than pretended.
